LLM Energy Reporting: Emission Data Processing and Monitoring for EPA and ISO 14001 Compliance

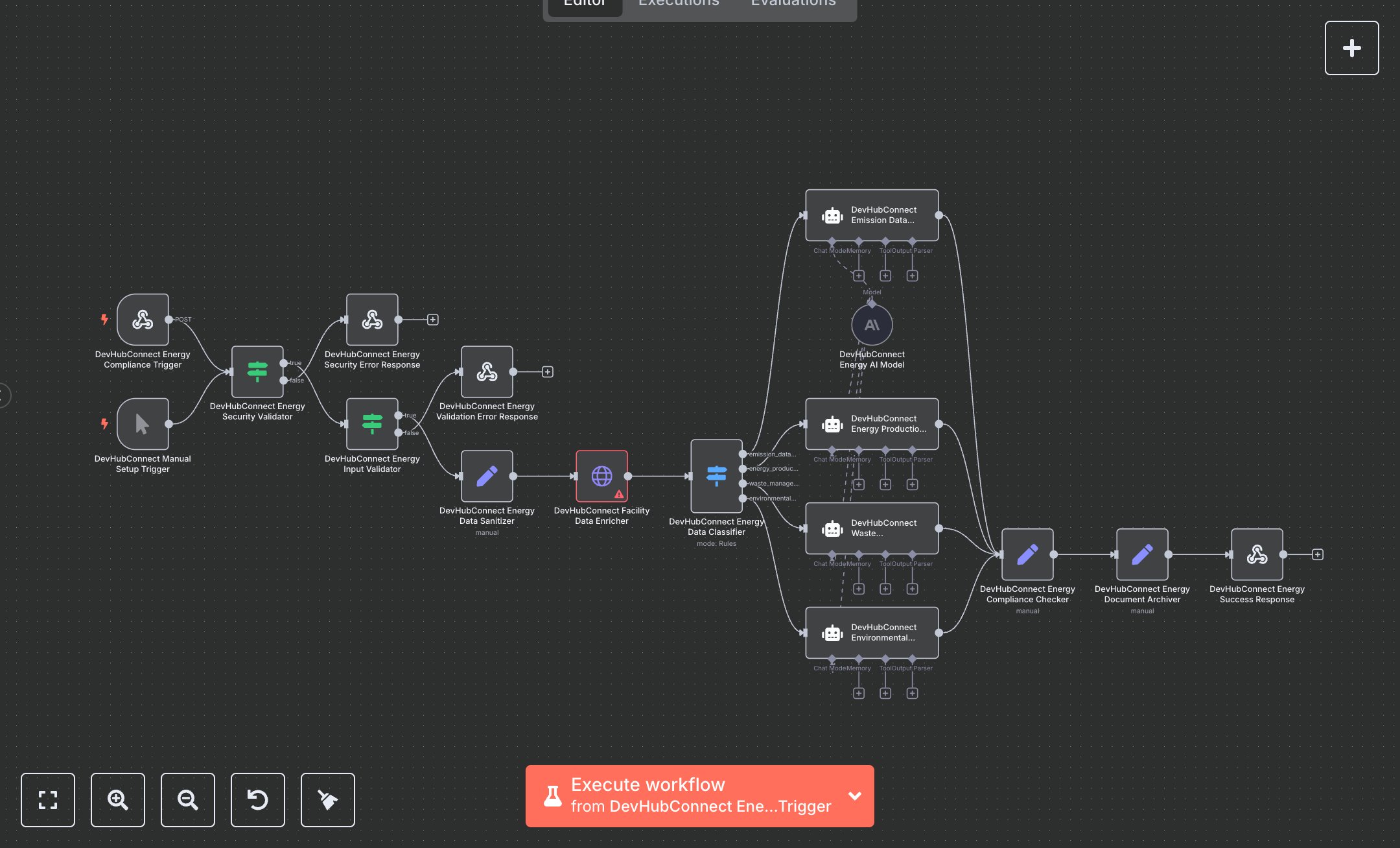

This workflow automates energy compliance reporting, processing emission data, energy production, waste management, and environmental monitoring, ensuring EPA and ISO 14001 compliance using OpenAI. Key nodes include Webhook for secure data submission, Condition for security and input validation, HTTP Request for facility data enrichment, Switch for data classification, Agent for AI analysis, Set for metadata and compliance, and Webhook Response for structured outputs. To set up, download n8n from n8n.io for self-hosting or sign up at cloud.n8n.io. Obtain an OpenAI API key from platform.openai.com and facility API credentials from your energy management system (e.g., SCADA or EMS portal). Add these under Credentials > Add Credential > OpenAI API and HTTP Header Auth. Import the workflow JSON via Workflows > Import. Configure the Webhook node with path /energy-compliance-processing, set to POST, and include CORS headers (Access-Control-Allow-Origin: *). Use ngrok for local webhook testing to expose the URL. Ensure HTTPS for secure data transmission. Test by sending a POST request to the webhook with JSON containing energyData, facilityId (3-20 alphanumeric characters), dataType (e.g., emission_data), and reportingPeriod (e.g., monthly). Include headers x-api-key, x-energy-auth, and x-regulatory-clearance. Verify Condition nodes check API key, authorization, regulatory clearance, content size (<50MB), and HTTPS. HTTP Request enriches facility data. Switch routes to Agent nodes for analysis (e.g., emission compliance). Webhook Response returns JSON with analysis, compliance, and metadata. Handle errors like missing API keys or clearance (401 response with 'ENERGY_SECURITY_VALIDATION_FAILED') or invalid facilityId/dataType (400 response with 'INVALID_ENERGY_INPUT'). Deploy by saving and enabling the workflow, ensuring webhooks are active. Validate outputs in Set nodes for EPA/ISO 14001 compliance and processing summary in Webhook Response. For issues, confirm API credentials, HTTPS usage, and a valid facility ID format. Test with sample data (e.g., emission data with facilityId 'PLANT001') to ensure analysis includes compliance details and recommendations.
